External light level sensors

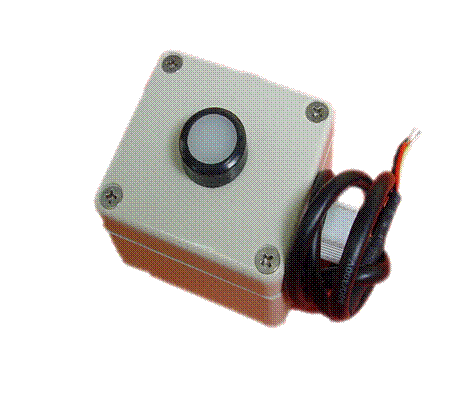

The LC111x series light level sensor is designed for outdoor applications where it is used for the active control of artificial lighting, both to optimize light levels and to achieve maximum energy efficiency. It uses a photo-diode cell to detect light levels in a selection of lux ranges, providing a linear 4-20mA output signal.



Features:

● DIP switch selectable ranges

● 24VDC supply

● 4~20mA output

Spec.
Sensor reference :Photo-diode
Accuracy: ±2% across range
Field of view: 60 Degrees
Ranges (switch selectable)
Ambient range:
Temp. –20°C - 60°C
RH: 0 - 95% non-condensing
Power supply: 24Vdc (±10%)
Connections: 3-wire
Output: 4-20mA or 20-4mA
Scaling: Linear
Protection: IP65

Order Code
LC111s
Space light level sensor 0K-2K Lux
LC111e
External light level sensor 0K-20K Lux
