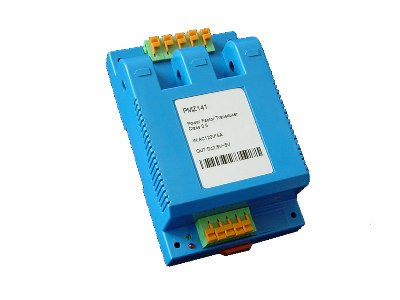

AC V and I input, 0-5V output, this 3 phase 4 line power factor transducer adopts high speed digital collection and synchronous data process technology to make V/I conversion responsive thus to precisely measure the power factor value. Completely isolated from field signals, this type of transducer can also be used in complicated environment.

Features

compact size
high reliabilty with field signals isolation
0-5V output

Spec.

accuracy: 0.5
input(AC): V<=500V, I<=5A
output:VZ=0~2.5V~5V
input freq.: 50HZ
response time:<300ms linear range:
V: 20% ~ 125%
I: 1% ~ 125%
input resistance: RV=VX x 1Kohm/V (VX>=10V)RI=0
V: 2 x nominal
I: 2 x nominal
supply: 24Vdc
quiescent current: 35mA
isolation durability:2500VDC/min.
ambient: 0 ~ 50ºC
load capacity: 10mA

Order Code
