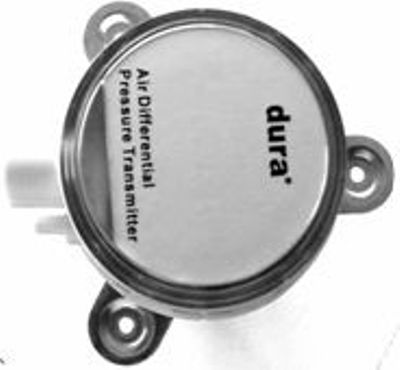

Air DP sensors

Measuring of pressure in air and non-corrosive gases. Transduction in voltage and current values.
The sensor is ideal for registering low air flow in air conditioning systems and for the measurement of fine pressures in environmental, laboratory and clean-room applications.



Features

suitability for static and dynamic measurements
short circuit-proof and protected against polarity reversal
fast and easy mounting.



Spec.

sensing type:ceramic fulcrum lever element
Output:4-20mA
Power supply:15-35Vdc
Accuracy:+/-0.7%FS
Dimensions:92mm x 85mm x 49.1mm
Ambient temperature:0ºC - +50ºC
Medium temperature:0ºC - +70ºC
Dynamic:response time < 10oms
Dynamic:pressure cycle < 10 Hz
Weight:130g
Protection:IP54
Class:I



Order Code

Order Code Range Overload Pressure
PA21 0-100Pa 5000Pa
PA22 0-300Pa 5000Pa
PA23 0-500Pa 10000Pa
PA24 0-1000Pa 10000Pa
PA25 0-1600Pa 10000Pa
PA26 0-2500Pa 20000Pa
PA27 0-5000Pa 20000Pa
