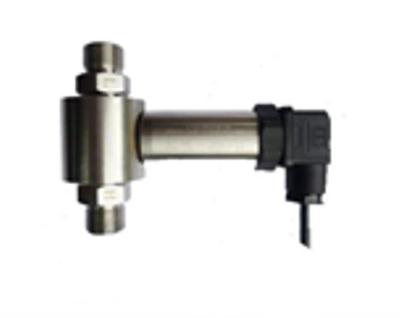

Liquid Differential Pressure sensor

 This Liquid DP sensor uses reliable piezo resistive sensing element to monitor the pressure value in various applications. With all stainless steel structure, it can be used in diverse media like water, oil etc. The pressure connection is easy to be done either directly or indirectly.



Features

● Reliable piezo resistive sensing technology

● High accuracy

● Multiple output selectable (V, I)

● Internal condensing proof design

● Built-in Noise suppression

Spec.
Accuracy: 0.2%FS, 0.5%FS
Output: 4-20mA(2 wire), 0-10V(3 wire)
Power Supply: 24V DC(5-36V DC)
Media Temperature: -20-85℃
Ambient Temperature: -20-85℃
Zero Drift: ≤±0.05%FS℃
Temperature Drift: ≤±0.05%FS℃
Temperature Compensation: 0-70℃
Safe Overload: 150%FS
Limit Overload: 200%FS
Response: 5 mS (rising to 90%FS)
Resistance Load: I: Max. 800Ω; V: >50KΩ
Insulation Resistance: >2000MΩ (100VDC)
IP Protection: IP65
Stability: 0.1%FS/annum
Vibration Factor: Output fluctuation <0.1%FS on

Order Code
Code
      Description
PL24
Liquid DP sensor,-1bar~+1bar
PL26
Liquid DP sensor, 0-4bar
PL27
Liquid DP sensor, 0-6bar
PL28
Liquid DP sensor, 0-10bar
