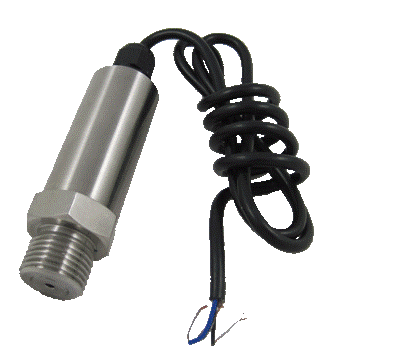

Liquid pressure sensor

 This series of Dura pressure sensors are used to monitor the pressure value in the process controls in various applications with media like water, sewage and air as is not erosive to the stainless steel material (316L). The product comes with selectable output signals.



Features

● Reliable piezoresistive sensing technolog

● Multiple output selectable (V, I)

● Adapter customized

● IP65 protection

Spec.
Output
4-20mA or 0-10V
Accuracy
+/-0.5%FS
Non-linearity (%FS)
<0.5
Hysteresis (%FS)
<0.5
Repeatability (%FS)
<0.5
Zero Drift (%FS)
<0.2
Temperature Drift (%FS)
<0.02
Stability (%FS/Year)
<0.25
Power Supply
12~36Vdc (Nominal 24V)
Operating Temp. (℃)
-20~85℃
Overload Capacity (%)
150
Life Cycle
>9M(25℃)
Resistance (Ω)
<750
Response Time (ms)
<1
Media
Compatible with 316L
Piezo Material
316L / Ceramic
Housing
1Cr18Ni9Ti
Adapter
G1/2 or customized
Explosive Proof
Exia II CT6
IP Protection
IP65

Order Code
Code
      Description
PL11
Liquid pressure sensor, 0-4bar
PL13
Liquid pressure sensor,0-10bar
PL14
Liquid pressure sensor,0-16bar
PL15
Liquid pressure sensor,0-25bar
