Anti-freeze thermostats

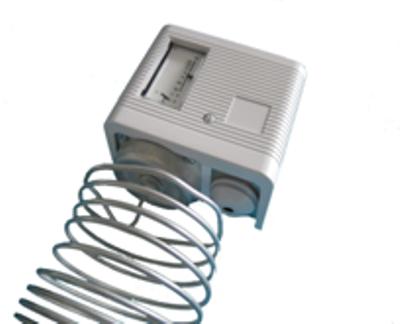

 These products are used to prevent the freezing of liquids inside pipes or heating/cooling coils.



Features

Tamperproof adjustment

Copper capillary tin plated

Volt free contacts

Spec.
 Sensitive element: gas-filled copper coil element. Contacts: dust-tight micro-switches with switching SPDT contacts (heat/cool)
Switch capacity: 24(10) A, 24...230 Vac
Range: -15...+15°C
Differentials: 1
Stage: 1
Reset: FT1: Manual / FT2: Auto
Capillary length: 6m
Max. ambient -30/+70°C
 Humidity: 0...95% RH (non condensing)
Storage: -30...+90 °C
Housing:Enclosure Flammability UL94-V0
Size: 85*78*50mm
Protection: IP43, class I
Weight: 500g
Note: The room temperature at the thermostat body should not fall below the set point.

Order Code
FT1 Frost Thermostat (Manual Reset)
FT2 Frost Thermostat (Auto Reset)
