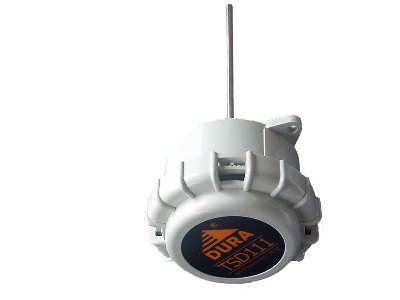

Temperature transmitters

 This range of low cost direct output sensors comprising space, and insertion with options of transducer available. A quick-release lid makes the TS range easy to install. The insertion has a 6mm diameter brass probe which is suitable for retrofit immersion applications and will fit most existing pockets. A foam gasket is fitted, and an optional adjustable depth flange is available for its use as a duct sensor, enabling the insertion depth to be adjusted.



Features

● Stable and highly reliable
● Wide range of sensing elements available for different controllers
● Low costs solution
● Choice of direct outputs and transducer for different requirements.

Spec.
Sensing element: PT1000
Supply: 24Vdc±10%; 20V<AC<25V
Output: 0/2-10V dc\0/4-20mA
Accuracy: PT1000   0℃ to +100℃: ±0.5℃
Ambient limits:
TSD121 range:   Enclosure: -40℃ to +50℃
                           Probe: -10℃ to +110℃
Humidity : 0 to 95%RH (non condensing)
Connections   : screw terminals for 0.5 to 1.5mm2
Materials used:
Enclosure :
High Impact resistant ABS for TSX121
Aluminum casing for TSL1X1
Probe : Stainless steel
Environmental Protection: Duct/immersion: IP67

Order Code
Part No
Description
TSR121
Indoor temperature transmitter,
output. (0/2-10V\0/4-20mA)
TSD121
Duct temperature transmitter,
output. (0/2-10V\0/4-20mA)
TSL121
Immersion temperature transmitter,
output. (0/2-10V\0/4-20mA)
TSE121
Outside temperature transmitter,
output. (0/2-10V\0/4-20mA)
