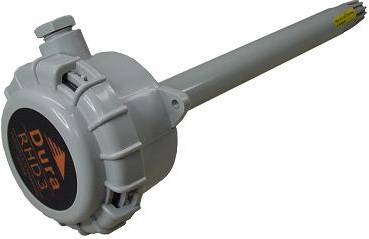

Duct RH & temp. sensors

This type of relative humidity and temperature sensors utilizes state of arts single chip multisensor module comprising a calibrated digital output to enable stablility and immunity to interference.
Application of CMOS processes with patented mirco-maching ensures highest reliability and excellent long-term stability. The device includes a capacitive polymer sensing element for RH and a bandgap temperature sensor. Both are seamlessly coupled to a 14 bit analog to digital converter, and a serial interface circuit on the same chip. Due to its integrated sensing and D/A conversion, it enables high signal quality, fast response time and immune to external disturbance.



Features

single chip multisensor module
immunity to interference
patented CMOS sensing technology
14 bit ADC
highest reliability and stability



Spec.

Humidity
RH sensor: capacitive polymer
Accuracy: +/- 3% @ 25 ºC
Response time: < 8 sec
Long term stability < 2% RH per year
Hysteresis :+/- 1% RH
Output:0-10Vdc ( 0 ~ 100% RH)
Temperature
Bandgap temperature sensor
Accuracy: +/- 0.5 ºC @ 25 ºC
Response time < 8 sec
Output:0-10Vdc ( -40 ~ +120ºC )
Housing material : ABS
Dimensions:
Housing 57 mm x 90 mm dia
Probe: 235mm x 20 mm dia (other ranges available upon request)
Ambient range: -10 ºC to +50 ºC
Power Supply
24Vdc/ac
Connection: 0.5-1.5 mm cable



Order Code

Order code Description
RHD3 Duct RH & Temp. Sensor, +/-3%(0-95%RH)
