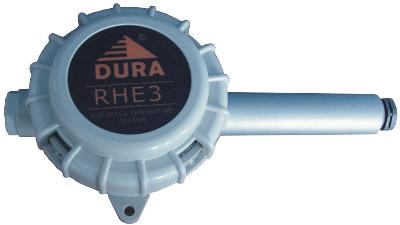

Outside RH & temp. sensors

This type of relative humidity and temperature sensors utilizes state of arts single chip multisensor module comprising a calibrated digital output to enable stablility and immunity to interference.
Application of CMOS processes with patented mirco-maching ensures highest reliability and excellent long-term stability. The device includes a capacitive polymer sensing element for RH and a bandgap temperature sensor. Both are seamlessly coupled to a 14 bit analog to digital converter, and a serial interface circuit on the same chip. Due to its integrated sensing and D/A conversion, it enables high signal quality, fast response time and immune to external disturbance.



Features

IP67
highest reliability and stability



Spec.

Humidity
RH sensor: capacitive polymer
Accuracy: +/- 3% @ 25 ºC
RH Measurement range: 0 - 90%RH
Long term stability < 2% RH per year
Hysteresis :+/- 1% RH
Output:0-10Vdc ( 0 ~ 100% RH)
Temperature
Bandgap temperature sensor
Accuracy: ¡À 0.5 ºC at 25 ºC
Temp Measurement range: -40 to 120 ºC
Output:0-10Vdc (-40 ~ +120ºC )
Housing material : ABS
Dimensions:
Housing 57 mm x 90 mm dia
Probe: 235mm x 20 mm dia (other ranges available upon request)
Ambient range: -20 ºC to +50 ºC
Power Supply: 24Vdc/ac



Order Code

Order code Description
RHE3 Outside RH & Temp. Sensor, +/-3%(0-95%RH)
