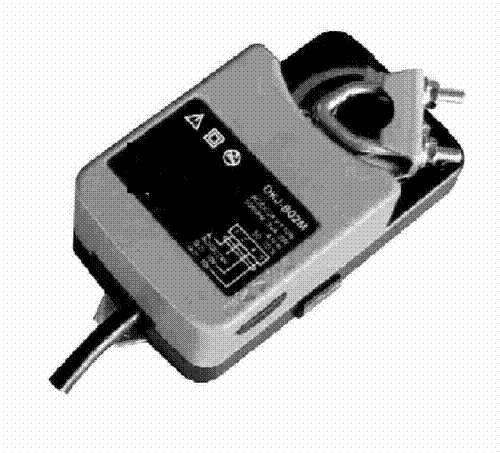

4NM/6NM/10NM Damper Actuators

Accepting either on/off or floating, or proportional control signal(model dependent) this DA series of damper actuators require either 24Vdc/ac or 230Vac power supply (see order code).
Auxiliary switch (3A,AC250) or potentiometer (10kohm) option is available on request.
The direction of rotation can be reversed and the angle of the mechanical travel can be limited by up to 30º from either end.


 Features

0 - 95º angle of rotation
ON/OFF or floating or proportional control (model dependent)
Adjustable working range
Auto protection system
Universal coupling



Spec.

Power Supply:
DAAC: 240 Vac +/-15%
DADC/DADP: 24 Vdc/ac +/-15%

Power consumption:
Operating state < 8VA
Standstill state < 2.5VA
Angle of Rotation: 0 - 90º (93º max)

Running Time:
Floating:30 - 600 sec.
proportional:30 - 100 sec.

Ambient: -10 to +55ºC, RH 0 ¨C95% (non condensing)
Noise: 40 db (A)
Weight: 0.6 - 0.9 kg
Max. spindle size:
DAAC4/DADC4 : Square 6-11 mm, Round 6-16mm
DAAC6/DADC6 : Square 6-16 mm, Round 8-18mm
DAAC10/DADC10 : Square 6-16 mm, Round 8-18mm

Overload Protection: Automatic
Spindle length: > 40 dB
Protection: IP 54



Order Code

Ordercode Description
DAAC4 4Nm 230Vac Floating control
DADC4 4Nm 24Vac/dc Floating control
DADP4 4Nm 24Vac/dc Proportional control
DAAC6 6Nm 230Vac Floating control
DADC6 6Nm 24Vac/dc Floating control
DADP6 6Nm 24Vac/dc Proportional control
DAAC10 10Nm 230Vac Floating control
DADC10 10Nm 24Vac/dc Floating control
DADP10 10Nm 24Vac/dc Proportional control
