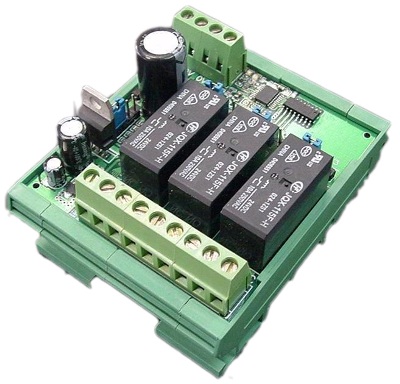

Three Relay Outputs expander

 The IOR13 is intended for use with BMS controllers to convert an analogue control output to a binary, heat/cool, staged or sequenced relay modes. LED s indicate correct operation and Hand/Off/Auto jumpers ease commissioning. Low current draw from 0-10Vdc controller output means that the IOR13 can work successfully with most BEMS controllers.


 Features
  • Fault finding LED indication
• Relay status LED indication
·On/Off/Auto links for ease of commissioning
• DIN Rail mounting
• Link selectable binary, heat/cool, staged or sequenced


 Spec.

Input signal: 0-10Vdc 1mA min. into 22kΩ

                     impedance
Output contacts: 8A at 230Vac (resistive load)
Power supply: 24Vac ±10% @ 50Hz or
                       24Vdc +10% -6%, 90mA max.
Hysteresis:     ±0.2Vdc about switching points
Operating modes: Heat/Cool
                               3 Stage
                               1 of 3 sequenced
                                Binary
LED indication: Supply OK
                         Supply voltage low
                         Supply voltage high
                         Relay Status
                         Hi input voltage
                    Incorrect input mode jumper selection
                Low input voltage (only in 2-10Vdc mode)
Manual override: On/Off/Auto
Electrical Terminals: Rising cage connectors for                  0.5-2.5mm² cable
Ambient range:
                        Temperature  -10°C to +40°C
                        RH  0-80% non-condensing
Dimensions:   H72mm x W64mm x D55mm


 Order Code
IOR13
Three Relay Module for DIN Rail
