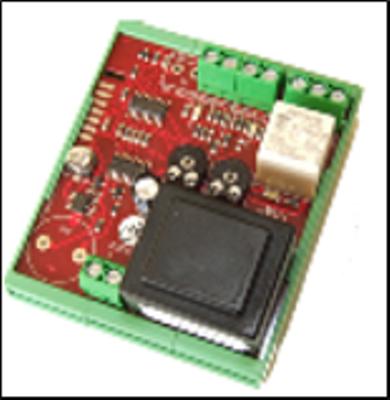

This module is designed for DIN-rail mounting inside AHU's, power distribution units or general areas where leak detection is required. A relay output is available for alarm signaling.

Features

Can be used with cable, point or rain sensors
AC detector excitation for reliability
24Vac/dc or 230Vac versions
Audible alarm option

Spec.

Detection Module
Supply: 24Vac/dc, or 230Vac
Supply current: 50mA max.
Output: SPDT relay 12A @ 230Vac
Response time: <1 sec. after exposure
Max. tape length with netting: 50 metres (with leader cable)
Max. sensor cable length: 200 metres (with leader cable)
Housing: DIN-rail carrier
Dimensions: 77 x 67 x 44mm

Rain Sensor
Heater supply voltage: 24V @ 40mA max.
Dimensions: 70 x 43 x 30mm max.
Weight: 125g

Point Sensor
Dimensions: Body 70 x 43 x 30mm max.
Steel probes 8mm long x 8mm apart
Weight: 125g

Water Cable Sensor
Lengths: 20, 50or 100metres

Order Code
